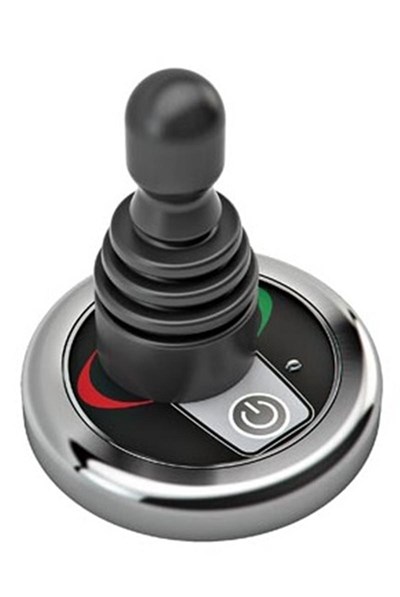

VETUS BPJR Control Panel for electric bow / stern thrusters

Product information


Thanks to the design and quality of materials, this new bow or stern thruster panel will be an asset to your dashboard! The compact panel can be fitted in a 52 mm diameter hole, making installation quick and easy using a standard hole saw. It is supplied with the same white, black and chromed plastic bezel rings as other VETUS boat instruments and is therefore ideal to be mounted alongside these. It can also be fitted in an engine panel instead of an instrument. The panel is provided as standard with a switched outlet (max 3 A) for switching extra equipment and is waterproof to IP66.

The panel also features:

a built-in time delay, to prevent thruster damage caused by reversing the direction of rotation too quickly
a warning signal with automatic shutdown in the event of continuous running for more than 2 minutes
protection against accidental operation (child lock)
automatic shut off after 30 minutes inactivity

Technical Specification

CONTROL Joystick
DIMENSIONS (HEIGHT X WIDTH) (MM)Cover diameter 63,5 mm; cut-out diameter 52 mm
VOLTAGE (V)12 and 24 V
