Vetus Altus Ventilation/Deck/Escape Hatches. ALT2626SL

Buying information Part Number: ALT2626SL From £197.00 inc VAT
Select an option Add to Basket Enquire
Product options ALT2626W, Atlus deck hatch type 2626 £166.00 inc VAT ALT4633SL, Atlus deck hatch type 4633 £359.00 inc VAT ALT5038SL, Atlus deck hatch type 5038 £359.00 inc VAT ALT4242SL, Atlus deck hatch type 4242 £370.00 inc VAT ALT4747SL, Atlus escape hatch type 4747 £429.00 inc VAT ALT5151SL, Atlus escape hatch type 5151 £449.00 inc VAT ALT6363W, Atlus escape hatch type 6363 £499.00 inc VAT ALTR420SL, Atlus deck hatch type R420 £460.00 inc VAT ALTD520SL, Atlus escape hatch type D520 £494.00 inc VAT ALTD420SL, Atlus ventilation hatch type D420 £460.00 inc VAT ALTD520SL, Atlus escape hatch type D520 £529.00 inc VAT Altus Ventilation hatch, type 3502. P.O.R £0.00 inc VAT Altus trapezium hatch, type 46T. P.O.R £438.00 inc VAT Altus deck hatch, type 4242 £369.00 inc VAT Altus escape hatch, type 5151 £449.00 inc VAT Altus escape hatch, type 5151. £449.00 inc VAT Altus trapezium hatch, type 41T. P.O.R £0.00 inc VAT Altus trapezium hatch, type 56T. P.O.R £0.00 inc VAT Altus trapezium hatch, type 56T. P.O.R £0.00 inc VAT Altus trapezium hatch, type 80T. P.O.R £0.00 inc VAT Altus trapezium hatch, type 51T. P.O.R £0.00 inc VAT Altus ventilation hatch, type 2618. P.O.R £0.00 inc VAT

Vetus Altus Ventilation/Deck/Escape Hatches. ALT2626SL

Product information

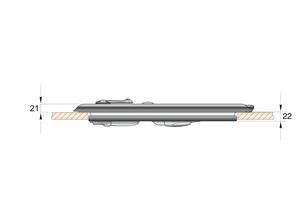

The ALTUS range features a sturdy aluminium profile which is only 21 mm high. They are CE classified AII, which means to say that they are designed for ocean use and can be fitted on deck. These hatches are provided with carefully designed hatch adjusters, which are both stylish and easy to operate.

Like other VETUS hatches, the ALTUS range can be opened from inside or outside the boat. They can also be left locked; either completely watertight or in a ventilation position.

The frame profile is hand-polished and anodized. The acrylic has a thickness of 10 mm and the colour is “dark smoke”.

An aluminum counter flange and a mosquito screen are available for these hatches.

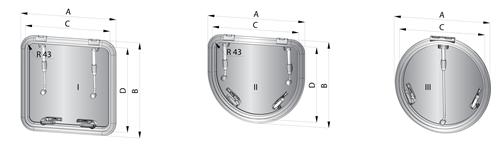

                                 Escape hatches                              Hatches   Ventilation hatches
                             I         II        III                           I        III         I        II
     External  dimensions in            mm ALT6363S ALT5151S ALT4747S ALTD520S ALTR520S ALT4242S ALT5038S ALT5038S ALTR420S ALT2626S ALTD420S
       A x B  701 x 701  585 x 585  544 x 544  592 x 524      592 495 x 495  581 x 451  531 x 401      491 334 x 334  491 x 326
     Cut-out      dimensions in           mm
       C x D  627 x 627  507 x 507  470 x 470  518 x 450      518 421 x 421  507 x 377  457 x 327      417  260 x 260  417 x 252





Technical Specification

SpecValue
EXTERNAL DIMENSIONS A X B (MM)334 x 334
NUMBER OF HINGES2
NUMBER OF ADJUSTERS1
NUMBER OF HANDLES1
TYPE MOSQUITO SCREENdna
