Vetus Libero Ventilation/Deck/Escape Hatches. LIB2032L

Buying information Part Number: LIB2032L From £190.00 inc VAT
Select an option Add to Basket Enquire
Product options LIB2032L, Libero ventilation hatch, radius 32mm £190.00 inc VAT LIB3432L, Libero ventilation hatch, radius 32mm £237.00 inc VAT LIB3232L, Libero deck hatch, radius 32mm £359.00 inc VAT LIB3255L, Libero deck hatch, radius 55mm £359.00 inc VAT LIB3732L, Libero deck hatch, radius 32mm £393.00 inc VAT LIB3755L, Libero deck hatch, radius 55mm £393.00 inc VAT LIB4155L, Libero escape hatch, radius 55mm £419.00 inc VAT LIB5032L, Libero escape hatch, radius 32mm £449.00 inc VAT LIB5055L, Libero escape hatch, radius 55mm £449.00 inc VAT LIB6232L, Libero escape hatch, radius 32mm £529.00 inc VAT LIB6255L, Libero escape hatch, radius 55mm £529.00 inc VAT

Vetus Libero Ventilation/Deck/Escape Hatches. LIB2032L

Product information



VETUS Libero hatch frames are hand polished prior to the anodization process. Not only does this have higher quality appearance, but has the advantage that dirt, salt and grease will not accumulate on the frame and cause permanent stains. Even under the most arduous conditions, VETUS windows, portlights and hatches will still look like new!

These hatches are classified CE AII.

VETUS hatch handles have a number of advantages.
The hatch can be opened from either inside or outside.
The hatch can be shut completely watertight, or secured with a small air gap to allow permanent ventilation.
An internal locking mechanism ensures the hatch cannot be opened from outside when the boat is left unattended. This operates in both the closed or ventilation positions.
The low external profile ensures that ropes, e.g. running rigging on sailing boats, cannot foul on the handles.
These handles are available separately and can be used to upgrade older VETUS Libero and Planus hatches.

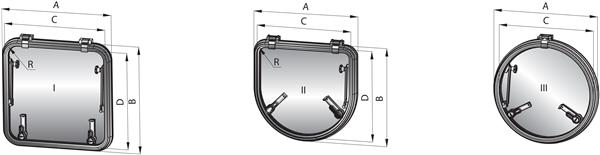

     Hatch style I                                            Hatch style II                                      Hatch style III




                        Escape hatches                               Hatches    Ventilation hatches
                    I        II     III                                      I          I          II
  External dim in mm     LIB62     LIB50   LIB470D  LIB470     LIB41    LIB37     LIB32     LIB34     LIB20  LIB470DS
           A x B  680 x 680  560 x 560  530 x 505    530  470 x 470  560 x 430  510 x 380 400 x 255   260 x 260   533 x 320
   Cut-out dim in mm
            C x D  620 x 620 500 x 500 470 x 445     470  410 x 410  500 x 370  450 x 320  340 x 195   200 x 200   473 x 260
 Cut-out radius in mm
              R    55 (32)    55 (32)       32      -       55    55 (32)    55 (32)       32         32         32







Technical Specification

SpecValue
EXTERNAL DIMENSIONS A X B (MM) 680 x 680
CUT-OUT DIMENSIONS C X D (MM)620 x 620
CUT-OUT RADIUS R (MM)32
NUMBER OF HINGES2
NUMBER OF ADJUSTERS2
NUMBER OF HANDLES2
TYPE MOSQUITO SCREENNo
