Vetus Stern Thruster Kit, For Transom Mounting, STERN250P

Buying information Part Number: STERN250P From £549.00 inc VAT
Select an option Add to Basket Enquire
Product options GRP Stern Thruster tunnel dia.250mm £549.00 inc VAT

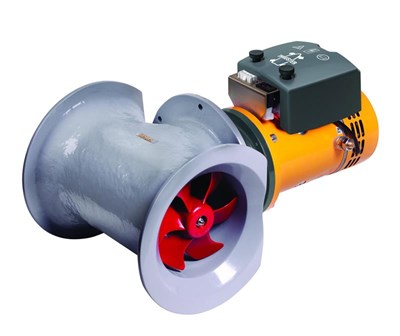

Vetus Stern Thruster Kit, For Transom Mounting,  STERN250P

Product information

Note: This kit does not include the Bow thruster the matching bow thruster must be purchased separately.



Docking was never this easy Combining a VETUS stern thruster with a VETUS bow thruster, will provide an even greater manoeuvrability of your boat in locks or harbours. By placing a side-directional thruster in the bow and another one at the transom, docking, sailing away, finding a spot in the lock or marina, becomes child’s play! Even the effects of wind and current can be effectively countered. Installation of a VETUS stern thruster is simple, the electric motor and other electric components are fitted internally to the transom of the boat. The tunnel and the propeller are installed externally on the transom.
Note
The range of 7 different stern thruster kits can make 14 different stern thruster models
These kits may also be used with ‘ignition protected’ thrusters and extended runtime thrusters.



Technical Specification

SpecValue
INTERNAL TUNNEL DIAMETER (MM)250
SIZE A IN MM, SEE DRAWING460
SIZE B IN MM, SEE DRAWING360
SIZE C IN MM, SEE DRAWINGBOW 125: 313, BOW 160: 373, BOW 160H: 168
SIZE D IN MM, SEE DRAWINGBOW 125: 200, BOW 160: 240, BOW 160H: 240
SIZE E MIN. IN MM, SEE DRAWING250
SIZE F, DIAMETER IN MM, SEE DRAWING370
SIZE G MAX. IN MM, SEE DRAWINGBOW 125: 58, BOW 160: 92, BOW 160H: 92
SIZE H SEE DRAWING (MM)BOW 125: 209, BOW 160: 222, BOW 160H: 120
SIZE I SEE DRAWING (MM) BOW 125: 111, BOW 160: 154, BOW 160H: 154
