Vetus VENT17812 / 17824 extraction ventilator

Buying information Part Number: VENT7612 From £252.00 inc VAT
Select an option Add to Basket Enquire
Product options VENT17812 - 12 Volt £142.00 inc VAT VENT17824 - 24 Volt £142.00 inc VAT

Vetus VENT17812 / 17824 extraction ventilator

Product information

We do not recommend using these extraction ventilators to provide air to the main engine(s). Every marine engine is able to draw sufficient air by itself, provided of course, that the ventilations openings to the engine room are adequate. If an extraction ventilator is placed in the air duct, the electric motor may overheat, as the suction power of the engine will cause the fan to over - rotate.

The purpose of these Vetus ventilators, is to extract the heat from the engine room when the engines are stopped, or, when petrol engines are installed, to extract any possible petrol vapours prior to starting the engine(s).

VENT17812 / 17824

  • Ignition protected
  • Complies with ISO 9097 marine standard
  • Available for 12 Volt (8A) or 24 Volt (4A) installations
  • Capacity: air displacement of approx: 12.2 m3 per minuter at 12 Volt DC static pressure: 32 H2O. Air displacement of approx 12.5m3 per minute at 24 Volt DC static pressure: 36 mm H2O

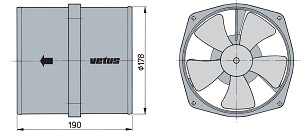

  • Suitable for bulkhead mounting and for receiving dia. 178 mm (internal) air ducting hose
