Vetus Flush Deck Hatches. FGH

Description

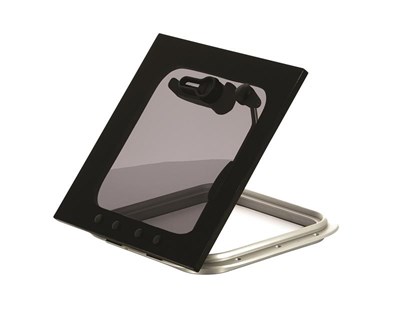

Designed specifically for new boat designs, these flush hatches are an economic and stylish alternative to conventional deck hatches.

Flush hatches are most suitable for new builds, where the deck can be specially prepared for the installation. The hatch is recessed completely into the deck and after fitting, there is only an attractive and unhindered surface, with nothing to snag lines or unwary feet.

The lid is made from 10 mm thick ''dark smoked'' acrylic and the frame from polished and anodised aluminium. The hatch is available in 4 sizes.

	Escape hatches		Hatches

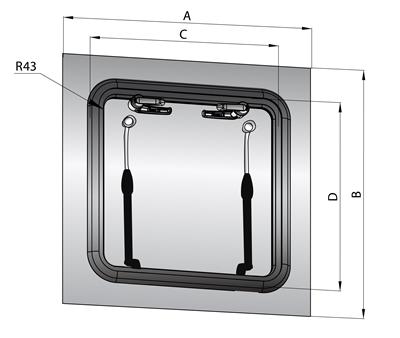

External dimensions in mm	FGH6363	FGH5151	FGH4444	FGH2626
A x B	700 x 700	580 x 580	515 x 515	330 x 330
Cut-out dimensions in mm
C x D	627 x 627	507 x 507	442 x 442	260 x 260

Technical Specification

EXTERNAL DIMENSIONS A X B (MM)

330 X 330

CUT-OUT DIMENSIONS C X D (MM)

260 X 260

NUMBER OF HINGES

NUMBER OF ADJUSTERS

NUMBER OF HANDLES

Buying information Part Number: FGH2626 From £391.00 inc VAT

Select an option

Options

FGH2626, Flush deck hatch type 2626 £391.00 inc VAT

FGH4444, Flush deck hatch type 4444 £546.00 inc VAT

FGH5151, Flush escape hatch type 5151 £627.50 inc VAT

FGH6363, Flush escape hatch type 6363 £709.50 inc VAT

FGH4633, Flush deck hatch type 4633 £474.00 inc VAT

FGH5139, Flush deck hatch type 5139 £627.50 inc VAT

Add to Basket Enquire
