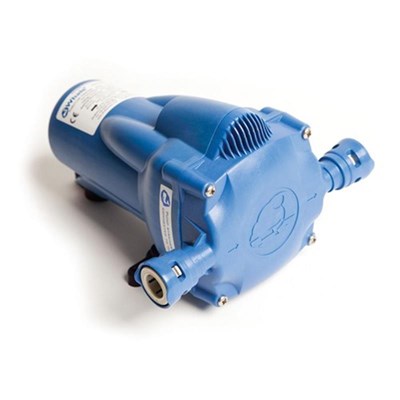

Whale Watermaster Auto Pumps. W-FW0814

Description

WHALE WATERMASTER AUTO PUMPS

NEW Automatic Pressure Pump - delivers smooth consistent flow and runs dry without damage.

Pump design based on more than 70 years of marine product experience. Traditionally automatic pressure pumps designs are mainly focussed on high power or performance, but with Whale’s experience of building products designed to withstand harsh marine conditions, they have added design features to protect the pump for the long haul!

WHY Watermaster?
Features and Benefits
POWER
• High flow rates at a variety of outlets
• Smooth constant flow
• Self priming up to 3m (10ft)
PERFORMANCE
• Quiet, automatic operation
• Easy installation - suitable for 15mm Quick Connect plumbing or 1/2" threaded connection
• Suitable for use with salt or fresh water
PROTECTION
• Fully sealed protective motor housing
• Completely integrated electronics
• IP65 rated - no water ingress
• Runs dry without damage
• Includes strainer to protect pump from debris

Accreditations:
• Industry Approved IP65 Pump
• EMC compliant
• CE marked

Specifications:

Part Number	W-FW0814	W-FW1214
Model:	Watermaster P2	Watermaster P3
Open Flow Rate (per min):	8ltrs (2.0 US GPM)	11.5ltrs (3.0 US GPM)
Suitable for No. of Outlets:	1-2 Outlets	3-4 Outlets
Voltage:	12V DC	12V DC
Recommended Fuse Size:	5A Automotive	7.5A Automotive
Weight:	1.5kg (3.3lb)	1.5kg (3.3lb)
Hose Connections:	Whale Quick Connect 15mm Female Connections 2 x 1/2" threaded connections and 2 x 1/2" barbed connections included	Whale Quick Connect 15mm Female Connections 2 x 1/2" threaded connections and 2 x 1/2" barbed connections included
Max System Pressure:	2 bar (30psi)	2 bar (30psi)
Materials:	Pump Body: Glass-filled Polypropylene, Motor Casing: Aluminium, Power-coated Steel Diaphragm, Valves, Feet: Monprene, Seals: Nitrile, Fasteners: Stainless Steel.	Pump Body: Glass-filled Polypropylene, Motor Casing: Aluminium, Power-coated Steel Diaphragm, Valves, Feet: Monprene, Seals: Nitrile, Fasteners: Stainless Steel.
Materials in contact with fluid:	Pump Body: Glass-filled Polypropylene, Motor Casing: Aluminium, Power-coated Steel Diaphragm, Valves, Feet: Monprene, Seals: Nitrile, Fasteners: Stainless Steel	Pump Body: Glass-filled Polypropylene, Motor Casing: Aluminium, Power-coated Steel Diaphragm, Valves, Feet: Monprene, Seals: Nitrile, Fasteners: Stainless Steel
Service Kits:	W-AK1316 replacement head, W-AK1319 replacement strainer, W-AK1329 replacement strainer for saltwater use	W-AK1316 replacement head, W-AK1319 replacement strainer, W-AK1329 replacement strainer for saltwater use
Current Draw:	4 Amps	6 Amps

Buying information Part Number: W-FW0814 From £111.17 inc VAT

Select an option

Options

Watermaster 8 litres, 1-2 outlets 12V DC £104.53 inc VAT

Watermaster 11.5 litres, 3-4 outlets 12V DC, 30PSI £111.67 inc VAT

Watermaster 11.5 litres, 3-4 outlets 12V DC, 45PSI £114.58 inc VAT

Watermaster 11.5 litres, 3-4 outlets 24V DC £119.46 inc VAT
