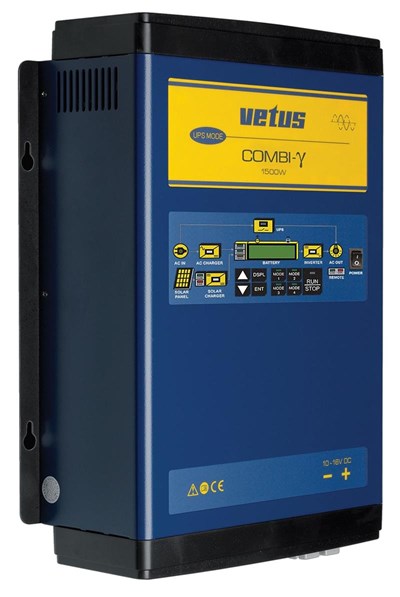

Vetus Combi-Gamma Battery Charger, 12V Or 24V, COMBI1512

Vetus Combi-Gamma Battery Charger, 12V Or 24V, COMBI1512

Description

Combi-gamma Battery charger 70A, Inverter 1500W, Solar connection, 12V.

Technical Specification

INVERTER (INPUT)
No
NOMINAL BATTERY VOLTAGE
10-16 V
MAX. INPUT CURRENT AT 10.5 V RESP. 21 V AND PNOM
167 A
FREQUENCY (MHZ)
Adjustable: 50 of 60 Hz ± 0.1%
WAVE SHAPE
Pure sine, total harmonic distortion < 3%
NOMINAL POWER
Continuous at cos phi =1, at a max. inverter temperature of 75°C
PEAK POWER
60 min 105 - 110% / 30 min. 120 - 130% / 10 min.140 - 145% / 5 sec. 150% / 1 sec. 200%
OUTPUT COS PHI (POWER FACTOR)
1
INPUT VOLTAGE (V)
200-250 V AC
INPUT FREQUENCY (HZ)
45-55 Hz or 55-65 Hz
CHARGING CURRENT
Adjustable
MAX. CHARGING CURRENT
70 A
CHARGING CURRENT STARTER BATTERY
4 A
INPUT POWER IN UPS MODE
180 -245, switch-over time < 3 msec.
MAX. SWITCHING CURRENT UPS
16 A
MAX. CURRENT POWER CONTROL
10 A
MULTIFUNCTIONAL RELAY
3x
AMBIENT TEMPERATURE (°C)
During storage: -30ºC to +70ºC. During use: 0ºC to +50ºC (inverter temp. 75°C)
PROTECTION CLASS
IP20
RELATIVE HUMIDITY
Max. 95%, condensation-free (all printed circuit boards are coated)
Buying information Part Number: COMBI1512 From £1,999.00 inc VAT
Select an option

Options

Battery charger 70A, inverter 1500W, solar connect £1,999.00 inc VAT
Battery charger 40A, inverter 1500W, solar connect £1,999.00 inc VAT
Battery charger 120A, inverter 3000W, solar connec £2,949.00 inc VAT
Battery charger 70A, inverter 3000W, solar connect £2,949.00 inc VAT
Add to Basket Enquire
