Vetus Porthole Stainless Steel 316, PWS31 Category A1, Inc Mosquito Screen. PWS31A1

Vetus Porthole Stainless Steel 316, PWS31 Category A1, Inc Mosquito Screen. PWS31A1

Description

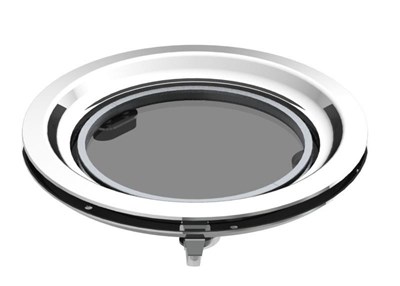

These portholes are manufactured in cast and polished AISI 316 Stainless Steel using the 'Lost Wax' method.

  • With a stainless steel inner frame and “smoke” coloured 8 mm acrylic. CE classified A I

These portholes are suitable for a panel thickness from 3 to 18 mm.









                                                                                                     Mosquito screens

                                                                                                      Porthole types PWS and PMS are supplied with an

                                                                                                      anodised aluminium mosquito screen.

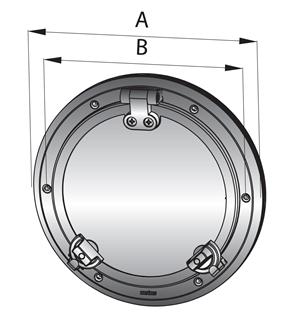

 External dimensions in mm    PWS31      PWS32
                      A       220      260
  Cut-out dimensions in mm
                      B       198      238



Technical Specification

EXTERNAL DIMENSIONS A (MM)
220
NUMBER OF HINGES
1
NUMBER OF HANDLES
2
CUT-OUT DIMENSIONS B (MM)
198
TYPE MOSQUITO SCREEN
HOR31S
Buying information Part Number: PWS31A1 From £297.50 inc VAT
Select an option

Options

PWS31A1, S/S 316, Cat A1, incl. mosquito screen £297.50 inc VAT
PWS32A1, S/S 316, Cat A1, incl. mosquito screen £345.50 inc VAT
