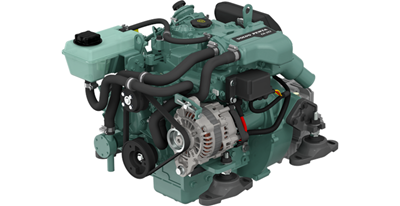

Volvo Penta D1-20 Inboard marine diesel engine 18hp

Buying information Part Number: 868976 From £5,970.00 inc VAT
Product options With 130S Gearbox £7,372.80 inc VAT with MS15A-B Gearbox £5,970.00 inc VAT

Featured products

Volvo Penta Easy Connect

Add to basket 23194818 From £381.60 inc VAT
Volvo Penta D1-20 Inboard marine diesel engine 18hp

Data sheets

Product bulletin D1-20 - 485 KB D1-20,130S - 215 KB

Product information

Volvo Penta D1-20 is an in-line 3-cylinder, 0.8-liter, naturally aspirated diesel engine using a camdriven, in-line injection pump, and freshwater cooling. With low cruising rpm, the engine runs quietly with minimal vibrations.


Smooth running with low vibration levels is achieved through a dynamically-balanced design incorporating highly efficient rubber isolation. Lower engine speed together with an inlet air silencer reduce noise levels and contribute to increased onboard comfort.


This engine delivers high torque at low rpm. That means plenty of power and quick response when maneuvering in a marina, in strong head wind, and in confined spaces.


With a rigid engine block and a one-piece cylinder head, this Volvo Penta marine diesel engine is designed and built to be immensely strong. This gives excellent reliability and long service life.


High-capacity charging is standard. The 115A alternator has an electronic sensor which enables ahigher battery capacity. Even at idle speed, the alternator gives more than 35A, and at cruising speed it delivers approx. 100A.


The engine is fitted with freshwater cooling as standard. This reduces internal corrosion and enables the engine to maintain a consistent and optimal working temperature under all conditions.


A propulsion system from Volvo Penta is easy to maintain. Our comprehensive range of high-quality oil, lubrication and coolant ensures uptime and top performance in the long term. Accessories include a fuel pre-filter to keep the engine in good condition.


- 115A alternator with built-in charging sensor - Electronic Vessel Control instrumentation and NMEA interface - Dedicated oil change pipe
- Relay-activated starter solenoid - Freshwater cooling is standard - High-capacity hot water outlet

Technical Specification

Engine designationD1-20
Crankshaft power, kW (hp)13.8 (18.8)
Propeller shaft power kW (hp)13.3 (18)
Engine Speed rpm2800-3600
Displacement, l (in^3)0.76 (46.5)
Number of cylinders3
Bore / stroke, mm (in)67 / 72 (2.64 / 2.83)
Compression ratio23, 5:1
Emission complianceBSO II, EU RCD Stage II, EPA Tier 3
