WHALE ORCA BILGE PUMP
RCA ELECTRIC BILGE RANGE
Orca - Compact and Powerful Electric Bilge Pump Range designed for use with a separate electric bilge switch Whales widest range of electric
submersible bilge pumps ever. Now featuring NEW high capacity models.
Efficient design with large footprint to ensure maximum surface area exposure to bilge water, now available in higher capacity 2000 and 3000 models.
Features and Benefits
• High performance
• Simple installation - multiple wire locations
• Low amp draw means long battery life
• Easy maintenance - access to motor cartridge and filter area
• Compact design
• Lowest drain 8mm (1⁄3")
• Available in a range of 5 flow capacities - 500, 950, 1300, 2000 and 3000 US GPH
• 2000 and 3000 models self clearing - prevent cavitation
Accreditations
• Meets ISO8849 marine standard • CE certified
| Part Number |

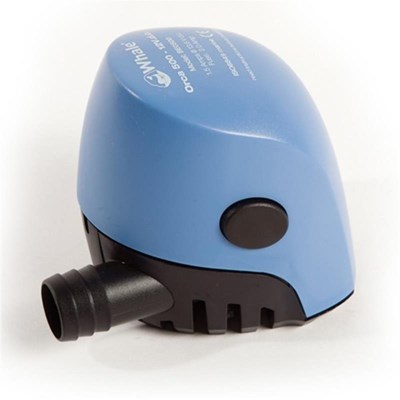

W-BE0500 |
W-BE0950 |
W-BE1450 |
W-BE1454 |
W-BE2002 |
W-BE3004 |
| Model: |
500 US GPH |
950 US GPH |
1300 US GPH |
1300 US GPH |
2000 US GPH |
3000 US GPH |
| Open Flow Rate @13.6V DC: |
32 I/min (500 US GPH) |
59 I/min (950 US GPH) |
82 I/min (1300 US GPH) |
82 I/min (1300 US GPH) |
126 I/min (2000 US GPH) |
189 I/min (3000 US GPH) |
| Flow Rate at 1m (3ft) head: |
28 I/min (450 US GPH) |
53 I/min (850 US GPH) |
69 I/min (1100 US GPH) |
69 I/min (1100 US GPH) |
104 I/min (1650 US GPH) |
170 I/min (2700 US GPH) |
| Nominal Voltage: |
12V DC |
12V DC |
12V DC |
24V DC |
12V DC |
24V DC |
| Current Draw: |
1.5 Amps |
3.5 Amps |
5 Amps |
2.5 Amps |
10 Amps |
9 Amps |
| Recommended Automotive Fuse: |
2 Amp |
5 Amp |
7.5 Amp |
5 Amp |
15 Amp |
15 Amp |
| Weight: |
0.28kg (0.6lbs) |
0.45kg (1lb) |
0.82kg (1.8lbs) |
0.82kg (1.8lbs) |
1.32kg (2.91lbs) |
2.64kg (5.82lbs) |
| Hose Connections: |
19mm (3/4") |
25/28.5mm (1"/1.1/8") |
25/28.5mm (1"/1.1/8") |
25/28.5mm (1"/1.1/8") |
28.5mm (1.1/8") |
32mm (1.1/4") |
| Wire Size: |
1.5mm² (16 AWG) |
1.5mm² (16 AWG) |
1.5mm² (16 AWG) |
1.5mm² (16 AWG) |
1.5mm² (16 AWG) |
1.5mm² (16 AWG) |
| Materials: |
Pump Body- ABS, Seals: Nitrile, Impeller: Acetal |
Pump Body- ABS, Seals: Nitrile, Impeller: Acetal |
Pump Body- ABS, Seals: Nitrile, Impeller: Acetal |
Pump Body- ABS, Seals: Nitrile, Impeller: Acetal |
Pump Body- ABS, Seals: Nitrile, Impeller: Acetal |
Pump Body- ABS, Seals: Nitrile, Impeller: Acetal |
| Max Discharge Head: |
3M (9.8ft) |
3.5m (11.5ft) |
4.5m (14.8ft) |
4.5m (14.8ft) |
4m (13ft) |
4.6m (15ft) |
| Overall Height mm: |
83 (3.3") |
109 (4.3") |
129 (5.1") |
129 (5.1") |
165 (6.5") |
195 (7.7") |
| Overall Width mm: |
102 (4") |
135 (5.3") |
168 (6.6") |
168 (6.6") |
144 (5.7") |
166 (6.5") |
| Overall Depth mm: |
78.5 (3.1")Ø |
103 (4.1")Ø |
121 (4.8")Ø |
121 (4.8")Ø |
120.5 (4.74")Ø |
132 (5.1")Ø
|
