Whale Supersub Bilge Pump 1100GPH 12V. W-SS1012

Buying information Part Number: W-SS1012 From £52.67 inc VAT
Enquire
Product options Supersub 1100 with non return valve 12V £52.67 inc VAT Supersub 1100 with non return valve 24V £55.90 inc VAT

Whale Supersub Bilge Pump 1100GPH 12V. W-SS1012

Product information

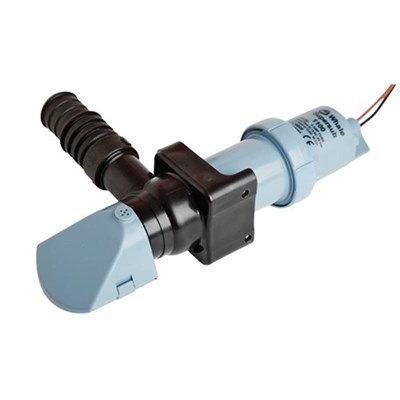

WHALE SUPERSUB BILGE PUMP 1100GPH 12V

SUPERSUB FAMILY. Narrow low profile standard submersible bilge pumps now with higher capacity models.
Designed for use with separate bilge switch.
Low profile electric bilge pump designed for narrow bilge spaces.
Supersubs fit deep down in small / awkward bilge spaces where other pumps won't.
Features and Benefits
• Low narrow design for confined bilge spaces
• Easy installation - outlet and pump body rotate to suit your installation
• High performance
• Efficient operation - very low power consumption
• Easy to clean - snap fit assembly
• Low profile strainer - leaves the bilge almost dry
• Drains to down 9mm (1⁄3")
Tip: It is important to ensure that a vented anti-syphon loop is incorporated in the system.
Approvals and Standards
• Conforms to ISO 8849 and ISO 15083
• Ignition protected per ABYC and USCG standards.
• EMC compliant. NMMA type accepted • CE certified
Accessories (available seperately):
• Electric bilge switches W-BE9003
• W-BE9006 Non return valve W-LV1219

Specifications:

Part Number: W-SS5012 W-SS1012 W-SS1024
Model: Supersub 500 (12V DC) Supersub 1100 with non return valve (12V DC) Supersub 1100 with non return valve (24V DC)
Open Flow Rate @13.6V DC: 32ltrs/ min (500 US GPH) 66 ltrs/ min (1050 US GPH) 66 ltrs/ min (1050 US GPH)
Flow Rate at 1M (3ft) head: 25ltrs/ min (400 US GPH) 47 ltrs/ min (750 US GPH) 47 ltrs/ min (750 US GPH)
Nominal Voltage: 12V DC 12V DC 24V DC
Current Draw: 2.4 Amp 4.3 Amp 2.2 Amp
Recommended Fuse Size (Automotive): 5 Amp 5 Amp 2.5 Amp
Weight: 270g (0.6 lbs) 400g (0.9lbs) 400g (0.9lbs)
Hose Connections: 19 or 25mm (3/4" or 1") 25mm /28 mm (1"/1.1/8") stepped ports
Minimum Wire Size: 1.5 mm² (16 AWG) 1.5 mm² (16 AWG) 1.5 mm² (16 AWG)
Materials: Pump Body: Polypropylene, High Temperature ABS, Locking Ring: Acetal, Impeller: Glass-filled PBT, Seals: Nitrile Fasteners: Stainless Steel Pump Body: Polypropylene, High Temperature ABS, Locking Ring: Acetal, Impeller: Glass-filled PBT, Seals: Nitrile Fasteners: Stainless Steel Pump Body: Polypropylene, High Temperature ABS, Locking Ring: Acetal, Impeller: Glass-filled PBT, Seals: Nitrile Fasteners: Stainless Steel
Materials in contact with fluid: Polypropylene, ABS, Glass-filled PBT, Nitrile Polypropylene, ABS, Glass-filled PBT, Nitrile Polypropylene, ABS, Glass-filled PBT, Nitrile
Accessories (available separately): Electric bilge switches W-BE9003 and W-BE9006 Non return valve W-LV1219 Electric bilge switches W-BE9003 and W-BE9006 Non return valve W-LV1219 Electric bilge switches W-BE9003 and W-BE9006 Non return valve W-LV1219
