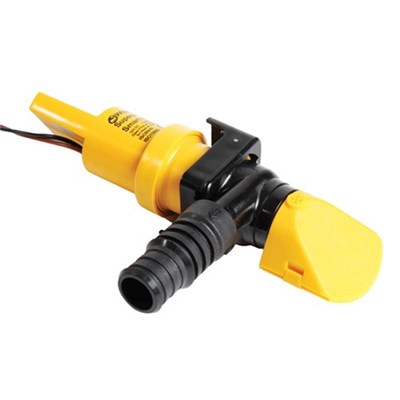

WHALE SUPERSUB SMART AUTO BILGE PUMP
650GPH 12V
SUPERSUB SMART FAMILY (IC Intelligent Control™)
Low profile automatic bilge pumps sense bilge water level and switch on and off automatically.
Fit deep down in confined bilge areas, under engines or cockpit floors.
WHY Supersub Smart?
Features and Benefits
• Fits deep in the bilge where other pumps can’t
• No separate bilge switch required
• Automatically controlled patented electric field sensor detects water level
• Waterproof electronics- protected against water ingress
• Quick and easy installation - long wires, strainer and outlet rotate to suit your bilge area
• Unaffected by wave motion
• Environmentally friendly - mercury free
• Includes manual override facility
• Solid state switching - no moving parts
• Drains to down 9mm (1⁄3")
Approvals and Standards
• Conforms to ISO 8849 and ISO 15083
• Ignition protected per ABYC and USCG standards
• NMMA type accepted • CE certified
Specifications:
| Part Number |
W-SS5212 |
| Model: |
Supersub Smart 1100 with non return valve |
| Open Flow Rate @13.6V DC: |
40 ltrs/ min (650 US GPH) |
| Flow rate at 1m (3ft) head: |
34 ltrs/ min (550 US GPH) |
| Nominal Voltage: |
12V DC |
| Current Draw: |
3.4 Amp |
| Recommended Fuse Size (Automotive): |
5 Amp |
| Wire Size (Caulked Wire): |
1.5mm (16 AWG) |
| Weight: |
0.32kg (0.71lbs) |
| Maximum Discharge Head: |
3m (10ft) |
| Hose Connections: |
19mm / 25mm (3/4".1") |
| Materials: |
Pump Body; polypropylene, high temperature ABS, fully potted circuitry. Locking Ring; acetal, Impeller; glass-filled PBT Seals; Nitrile, Fasteners; stainless steel. |
| Overall Dimensions (H x W x L): |
75 x 54 x 212mm
3" x 2.1/8" x 8.3/8"
|
