Vetus Ultrasonic Tank Level Sensor - Analogue. SENSORA

Buying information Part Number: SENSORA From £160.15 inc VAT
Select an option Add to Basket Enquire
Product options For analogue induction of water/fuel/waste £160.15 inc VAT For indication via bus system of water/fuel/waste £160.15 inc VAT

Vetus Ultrasonic Tank Level Sensor - Analogue. SENSORA

Product information

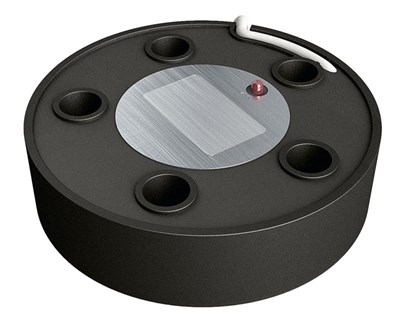

The VETUS ultrasonic level sensor is contactless and will measure the fluid level in any type of tank. It is suitable for use with: petrol, diesel fuel, drinking water, black and grey waste water.

After installation, the sensor can be calibrated very easily with the aid of a LED and a calibration wire; no other equipment is required.

The sensor may be installed in any type of tank, regardless of its dimensions, but with a maximum depth of 80 cms.

The sensor may be connected to all standard VETUS analogue level indicators and also to the VETUS waste water control panel (WWCP).

Technical data:

  • Voltage: 12 and 24 Volt D.C.
  • Current consumption: 4 mA
  • Interface: Analogue
  • Tank depth: 80 cm
  • Accuracy : + / - 5%
  • Temperature range: - 20 to + 70° C.
  • Flange: SAE 5

Please note: when upgrading from any of our universal or adjustable arm sensors, an addition live feed will need to be provided - ideally from the instrument.

Technical Specification

SpecValue
VOLTAGE (V)12 and 24 V
CURRENT CONSUMPTION (A)35 mA
INTERFACEAnalogue
TANK DEPTH (MM)1200
ACCURACY+/- 5%
TEMPERATURE (°C)0°C to + 70°C
FLANGESAE, 5 holes
DIMENSIONS (LENGTH X WIDTH X HEIGHT) (MM)77 x 23
